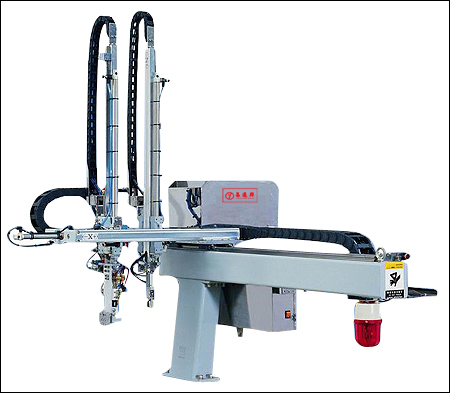

| 轻型横走式机械手系列规格表
型号
MODEL 适用注塑机
Adaptable
INJ-,/C(TON A B C D E F G H I J L M N O P Q R S T
TA550 50-100T 1460 980 1390 590 1185 250 115 830 100 310 140 285 50 410 115 35 495 255 300
TA550+M 50-100T 1580
TA650(W) 50-150T 1460 1480 1280
*产品规格若有变更,恕不另行通知
We reserve right to change specifations without prior notice
产品特点:
TY系列适用于250吨至50吨卧式注塑机的产品和水口取出,有单截式和倍速机构双截式,可选购横行驱动方式,气动(无杆气缸)驱动,双频马达驱动,伺服马达驱动。
TA series are applicable to horixontal injection mold machine between 50~250(including take out of products and down spout). There are single load model and double -load model with multispeed mechanism .Optional drive mode includes sidle drive , pneumatic (cylinder with no piston rod ) drive , Frequency conversion motor drive and servo motor drive .
轻型横走式上下手臂使用著名品牌高刚性线性滑轨,耐磨耗。配合高强度铝合金结构,坚固耐用,使用寿命长。
Light weight sidle upper and lower robots adopt famous brand of linear slide rail with high strength ,which is wear resistant sufficiently because of high-strength aluminum alloy structure . This kind of robot features good rigidity , good durability and long service life.
双截式手臂:
1、采用皮带倍速机构
Use belt multi-speed mechanism
2、使用高强度铝金手臂配合线性滑轨,上下速度快,震动小耐磨耗。This high strength aluminum alloy robot is equipped with linear slide rail , so it has fast loading and unloading speed , low vibration and high wear resistance
|
|
