| 苏州市易通注塑机周边设备有限公司 |
| 所在地区:
江苏/苏州 |
| 法人代表:杨芳林 |
| 公司规模:200 |
| 成立年份:1990 |
| 经营模式:生产型 |
 |
|
| 产品搜索 |
|
|
|
|
|
 |
|
| 产品分类: |
机械及行业设备/塑料机械/加料再生破碎机 |
 |
|
| 标准库名: |

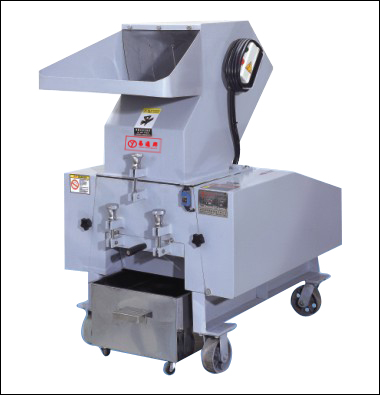

强力粉碎机 |
|
| 主要规格: |
|
|
| 用 途: |
碎料機 |
|
| |
查看公司介绍 打印本页 |
|
| 强力粉碎机系列规格表 Specifications of strong granulators series
型号
MODEL 马达功率
HO/KW 进料口尺寸
MM 粉碎刀具尺寸
MM 粉碎能力
KG 外部尺寸
MM 重量
KG
YTD-050 5HP/4KW 230x200 220xφ200 150-200 640x900x1100 290
YTD-075 7.5HP/5.5KW 300x200 300xφ200 200-300 770x1000x1260 450
YTD-100 10HP/7.5KW 400x270 400xφ250 250-400 870x1100x1400 550
YTD-150 15HP/11KW 510x290 500xφ290 350-600 1030x1400x1500 900
YTD-200 20HP/15KW 610x320 600xφ320 450-700 1100x1500x1700 1100
YTD-300 30HP/22KW 815x470 800xφ470 800-1000 1490x2150x2200 2000
YTD-500 50HP/37KW 815x520 800xφ520 1100-1300 166x2430x2500 2300
YTD-750 75HP/55KW 960x600 950xφ600 1400-1600 1760x2150x2830 3000
YTD-1000 100HP/75KW 1100x800 1000xφ800 1600-1800 2050x2670x3420 6000
*产品规格若有变更,恕不另行通知
We reserve right to change specifations without prior notice
:产品特点:
1、入料斗、粉碎刀具、筛网均可轻易拆卸,清洗方便。
Easy-disassembly dsign make the door for material incoming .cutter and breaker filler disassemble very easy.
2、马达附有过负荷保护装置,并有电源连锁保护系统,操作、清洗绝对安全.
The motor is provided with safeguard of over-load chain safeguard system of power ,so it is very safe when operation and purify.
3、设计独特,马力最小,效率却佳,并备有双层消音设备,噪音低。
The design is unique ,the power is the smallest ,but the efficiency is the highest ,and it is provided with Double-silencer ,so the noise is very small.
4、筛网孔径标准配置为8MM,其它规格可接受订做。
The screw hole diameter of the steel screen is 8mm, and the secification can customize.
5、进料斗和筛网可接受订做为不锈钢,专业粉碎透明料及白料、医疗用品,方便清洗,避免有污点。
While smash the transparent raw material with the white raw material ,enter the material to please with screen net to order to make into the stainless steel ,so as not to while smashing varnish to can shed off.
应用范围:
1.塑胶,橡胶工业 Plastic,rubber industry
2.制鞋业 System shoe industry
|
|
